REGIUS Veterinary Solution
You can convert your practice to digital radiography with Konica Minolta ImagePilot that is specifically designed for veterinary practices.
*Available in Certain Country
REGIUS MODEL 110S Major specification
| Cassette Size | 14 x 17”, 14 x 14”, 11 x 14”, 10 x 12”, 8 x 10”, 18 x 24 cm, 24 x 30 cm, 15 x 30 cm |
|---|---|
| Sampling Pitch | 2 types: 87.5 μm / 175 μm |
| Processing Capacity | 40 plates per hour (14x17”- 175 μm) |
| Digital Gradation Level | 4096 levels (12 bit grayscale output ) |
| Outer dimensions and Weight | W740 x D365 x H747mm / approx. 100kg |
ImagePilot Major specification
|
|
|
|
| OS | Windows XP Professional SP2 | Windows XP Professional SP2 |
|---|---|---|
| HDD | Two types; 250GB（ RAID１）/500GB（ RAID１） | 160GB |
| Optical Drive | DVD Super Multi-drive | DVD Super Multi-drive |
| Image Storage Capacity | Approximately 30,000 images (CR, 14”×17”) | Approximately 10,000 images (CR, 14”×17” |
| Outer Size/Weight | W178×D445×H435mm 12.8kg（at minimum construction）, 14.2kg（at maximum construction） |
W85×D359×H309mm 6.3kg（at minimum construction）, 6.4kg（at maximum construction） |
| Power | AC90～137V 50/60Hz 280W（standard） | AC100～127V 50/60Hz 61.8W（standard） |
| Insulation Environments | Temperature：10～30℃ Humidity：30～80％RH（no dewdrop） |
Temperature：10～30℃ Humidity：30～80％RH（no dewdrop） |
| Image Processing Function | Integral Processing、 Automatic Processing Parameter Study | |
| Viewer Function Display | Grayscale, Window Change, Pan, Zoom, Magnifying Glass, Cine, Comparison Display | |
| Viewer Function Measurement | Ratio of heart and chest, Distance Between 2 Points, Angle between 3 Points, Cobb Angle, Rectangle area, Ellipse area, Polygon area | |
| Viewer Function Annotation | Line, Rectangle, Circle, Ellipse, Freehand, Text | |
| Offline Image Link | Media Input/Output（PDI, DICOM, JPEG, Bitmap） | |
| Software Features | Patient Registration Image Acquisition Automatic Image Processing with Learning Function Image Review ‒ including magnification, annotations, measurements, layout and window leveling tools Export JPEG images to Media (CD, DVD and USB drive) Export DICOM images to CD/DVD with DICOM PDI format and optional PDI Viewer Import DICOM or JPEG images from Media (CD, DVD and USB drive) Windows Printing on Paper HL7, ADT and ORM Remote access DICOM Printing DICOM Q/R, SCU and SCP DICOM MWL DICOM Send to PACS * Veterinary DICOM support. |
|
★The construction of hardware varies by country.
★Specification are subject to change without prior notice.

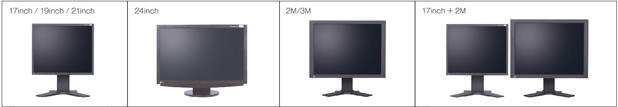

Sample of monitor combination
