Hybrid Device Console CS-3
Diagnostic Imaging Workstation CS-3 is a console for dual use with FlexDR and REGIUS series. Touch screen LCD monitor with wide viewing angle has been introduced to a simple and intuitive user interface. Reliable image checking feature follows the same line of that in FlexDR series.
The system provides total management from input of patient/order information received from HIS/RIS all the way through to image checking, as well as more comfortable and efficient image acquisition environment.

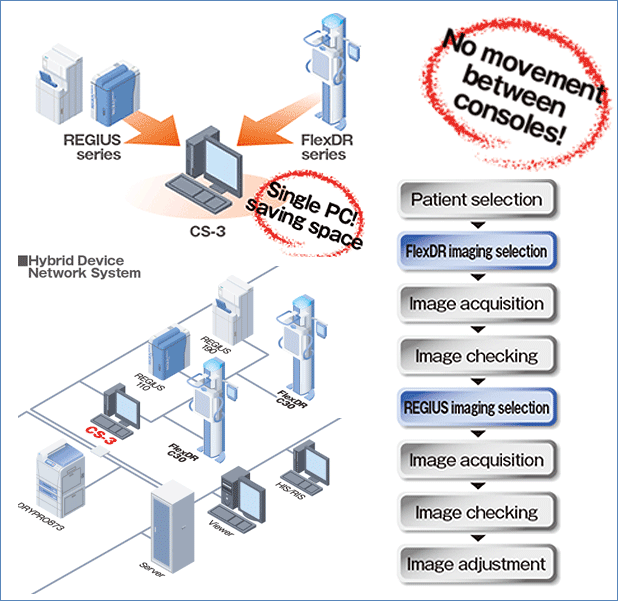

Hybrid Device Workflow Console
The system centralizes workflow from order information management to image output in general X-ray imaging by the use of “FlexDR and REGIUS system”. Change into Uniformity of handling (including console operations) and consistency of image quality is achieved with simultaneous CR and DR imaging for a single patient.
Equipped with patient information registration function
■Search screen:
On this screen, patient information can be searched by ID number.
Suitable for operation with patient check-in at each imaging room.
■Order list screen:
Registered orders are displayed sequentially in the combined
use of patient check-in terminal. Suitable for operation with
separate patient check-in.
Various optional functions that enhance usefulness and convenience.
■Arbitrary annotation function:
This function allows text editing and
layout at any positions on the image.
Annotations can be reflected in the
output (to host or printer).
■Inter-console image sharing:
This function allows image data sharing
among CS-3 consoles on a single
network.

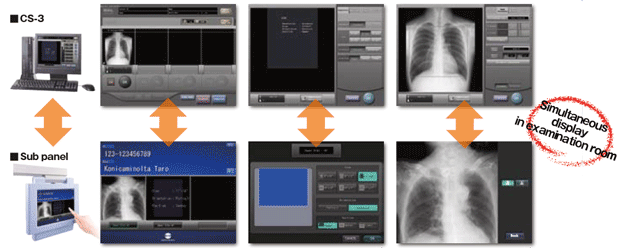

Provision of real-time operation
Based on the review of image acquisition workflow, Konica Minolta offers an additional touch screen LCD monitor (subpanel) with FlexDR model, providing image display and various other operations in the examination room to achieve a workflow with improved real-time performance. Upper line shows CS-3 display and lower line shows sub panel display.
