Acies
Realized rapid diagnostic environment with abundant functionality and variant monitor. Simple operation PACS - Acies.
*Available in Certain Country
Server Specification Requirements
| 250GB Model | 500GB Model | 2.0TB Model | 3.0TB Model | |
| CPU | Quad Core Xeon W3520 2.66GHz | Quad Core Xeon E5530 2.40GHz | ||
| Memory | 2GB | 4GB | ||
| OS | Microsoft Windows XP Professional SP2 or SP3 / Windows7 Professional | Microsoft Windows Server 2008 | ||
| .NET Frame | Ver2.0 SP2 | Ver3.5 SP1 | ||
| HDD | 250GB×2（RAI D1） (Image Storage capacity) About 160GB (Database Storage capacity) About 12 GB |
500GB×2（RAI D1） (Image Storage capacity) About 332GB (Database Storage capacity) About 12 GB |
2.0TB（750GB×3、RAID5） (Image Storage capacity) About 1.4TB (Database Storage capacity) About 30GB |
1TB×2（RAI D1）＋1TB×5（RAI D5）＋HS (Image Storage capacity) About 3.0TB (Database Storage capacity) About 100GB |
| Optical Drive | DVD-R Drive | |||
| DVD-R(About 4.7GB) | Storage image Number About 1,000 images Calculation Condition: Compression ratio 50%(lossless) |
|||
| Network | Ethernet 100BASE-TX / 1000BASE-T | |||
| Image Input | Max 10 Channel | |||
| DICOM/HL7 Support | Storage（SCU、SCP）・QR（SCU、SCP）・Print（SCU）・GSPS（SCP）・MWM（SCU） | |||
| Support SOP Class | CR、DX、CT、US、MR、SC、XA、XRF、NM、ES、GM、SM、XC、PT、RT、MG | |||
| Client Connection | Client Connection : MAX 20 terminals. Concurrent users : MAX 8 users. |
Client Connection : MAX 50 terminals. Concurrent users : MAX 20 users. |
||
| Installation Environment Frequency | 50Hz or 60Hz | |||
|
Installation Environment Temperature |
10～35℃（No dewdrop） | |||
| Viewer Function Display | Grayscale, Pan, Zoom, Window Change, Magnifying Glass, Cine, Comparison Display etc | |||
|
Viewer Function (Measurement) |
Line length, Angle, Open angle, Ellipse, Rectangle, Point CT Value, Ellipse CT Value, Ratio of two line length, Ratio of heart and chest etc | |||
|
Viewer Function (Annotation) |
Line, Rectangle, Circle, Ellipse, Freehand, Text etc | |||
|
Viewer Function (Offline Image Link) |
Media Input and Output (DICOM, JPEG, Bitmap, PDI ) | |||
|
Viewer Function (Others) |
Print Composer, Report, Reprint, Paper print etc | |||
|
Viewer Function (Option License) |
Regius Processing / Easy 3D（MPR / MIP/ MinIP）/ Mammo Functions / DICOM-SR for CAD, etc | |||
|
Electrical Storage (Storage Media) |
Write onto DVD-R | |||
|
Electrical Storage (Log Management) |
Electrical storage history, Patient information correction history | |||
|
Electrical Storage (User Certification) |
Login (into Viewer) history certification, Issue authorization for user | |||
Language localization
Can be used in the following languages.
English, French, Italian, Spanish

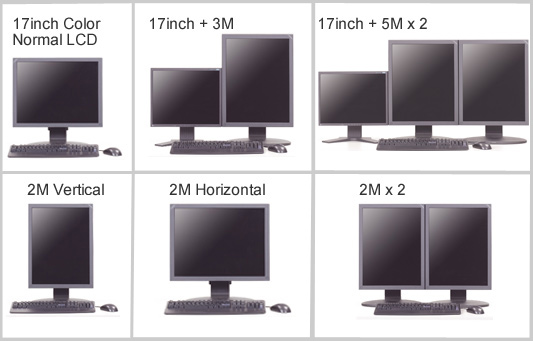

Sample of monitor combination
You can select from normal monitor 17/19/21inch, high resolution monitor 2M/3M Monochrome/color, and also 5M Monochrome.
Client PC
<Client Environment>
| OS | Microsoft Windows XP Professional SP2 or SP3 / Windows Vista Business / Windows7 Professional |
|---|---|
| .NET Framework | ver2.0 |
| CPU | Pentium 2.0GHz Above |
| Memory | 1GB Above |
| HDD | 36GB Above |
| Network | Ethernet 100BASE-TX/1000BASE-T |
Option NAS
*Connection Number:one for nearline storage(capacity extension),another for backup
| 1.0TB Type ( 500GB×3, RAID5) | 4.0TB Type (1TB×6, RAID6 ) | |
| Image storage capacity | About 1.0TB | About 4.0TB |
| Size | W250×D170×H285mm | |
| Weight | About 10.8kg | About 11.2kg |
Option CD/DVD Publisher-Rimage
| Rimage 5100N Large volume of CD/DVD production |
|
Rimage 2000i Small volume of CD/DVD production |
|
*The construction of hardware varies by country..
*Specifications are subject to change without prior notice.
