Actively engaged in 3D imaging technology internationally since 1997, Konica Minolta works in close partnership with leading universities, research institutes and software partners. This global activity puts the company in an ideal position to offer successful product solutions for a wide range of 3D applications. Due to its expertise in color and light-measurement technology, the design and manufacture of 3D imaging systems is a logical next step in the development of Konica Minolta’s core strengths.

Konica Minolta Non-Contact 3D Digitizers are used in medical science (prosthesis fitting, mouth/jaw/cosmetic surgery), industry (reverse engineering, rapid prototyping), restoration and conservation of art objects and cultural heritage materials (three-dimensional documentation and archiving, virtual museums, virtual restoration, non-contact molding for replication), and in web design and animation (films and cartoons).

Konica Minolta Non-Contact 3D Digitizers work without touching the object and without damaging it in any way. Once obtained, the object data can be stored digitally or output in analog form so it can be processed and utilized for a wide variety of purposes. Optical measurement systems are thus ideally suited for multi-dimensional imaging and digitization of art objects and cultural heritage materials. The object data collected may be used to conserve art and cultural treasures, for study and research purposes, and as a powerful marketing tool. To highlight the use of 3D imaging technology for the conservation, restoration, and promotion of cultural heritage, Konica Minolta is participating with five other organizations in the European VIHAP 3D project.

The aim of the project is to produce high-quality 3D images of European art treasures, to ensure conservation of the originals, and give the public easier access to them.

Applications in Restoration, Conservation and Cultural Heritage

For use in cultural conservation and museum services, Konica Minolta Non-Contact 3D Digitizers combine all the advantages of non-contact optical measurement in a single system.

They are portable and compact, giving maximum mobility in the exceptionally sensitive environment of art and cultural conservation. No calibration is necessary so they are easy to operate.

Konica Minolta Non-Vontact 3D Digitizers are based on the principle of laser triangulation. Objects are scanned using a laser light stripe, producing non-contact three-dimensional measurements of objects, free-form surfaces, models and other shapes. By using RGB filters, you can measure not only the shape of the object but its texture as well.

With dimensions of 20 x 40 x 30cm and a weight of around 11kg, the digitizers are handy to use and may be operated from a tripod. The VI-910 (called the VIVID 910 outside of Europe) has three interchangeable lenses, giving it an exceptionally flexible scanning area. The V1-910 has received ISO 9001 and ISO 14001 certification.

Each scan can cover a section from 11 x 8cm at a subject distance of 60cm, up to a 120 x 90cm at a subject distance of 2.5m. Measuring time in fine mode (307,000 points) is 2.5 seconds, and in fast mode (76,800 points) is 0.3 seconds. The system achieves a resolution of up to 0.008mm in the z coordinate. The VI-910 can be also be operated in stand-alone mode with no computer connection using an LCD and compact flash memory card.

With the Konica Minolta standard software, it is then a simple matter to merge several individual scans and edit and export the data. The digitizer can also be operated with a turntable, allowing rapid 360° acquisition of models. The object data can then be processed thereafter with the RapidForm software - a highly functional and flexible tool.

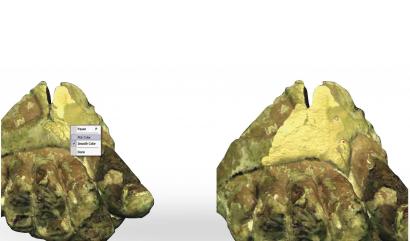

In addition to geometric measurements, the digitizer can also
document the color texture of objects.

Applications in Restoration, Conservation and Cultural Heritage

Used in conjunction with the right software such as RapidForm, Konica Minolta Non-Contact 3D Digitizers make ideal tools for documentation and research purposes.

For more detailed object analysis, virtual slices can be cut through objects as required.

A few mouse clicks will give you measurements of volumes or areas.

Applications in Restoration, Conservation and Cultural Heritage

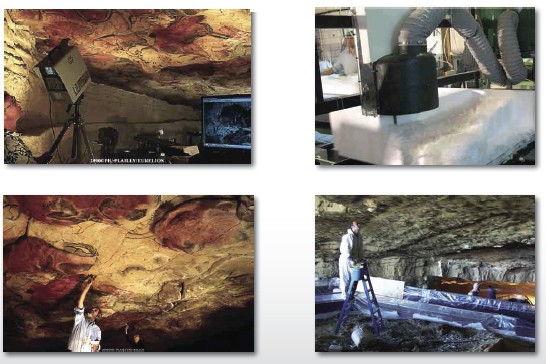

Thanks to their exceptional mobility, Konica Minolta Non-Contact 3D Digitizers are widely used for on-site measurement of art treasures. For example, archaeologists making a virtual reconstruction of the Colosseum in Rome documented architectural details such as ornaments, friezes and capitals for three-dimensional presentation on the Internet.

Applications in Restoration, Conservation and Cultural Heritage

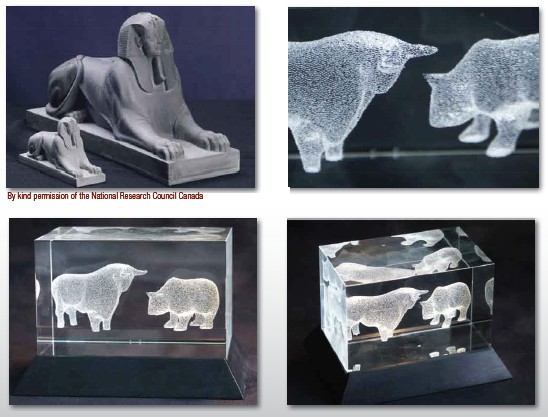

It has long been standard procedure in the industrial sector to create models from three-dimensional object data, either strictly 1:1 or scaled as required, using techniques such as 3D wax modeling or stereo lithography. Compared with conventional methods of direct modeling with materials like silicon, optical systems for measuring object forms have important advantages for museum exhibits or art and cultural treasures.

• The shape is measured without touching the object so absolutely no damage is caused.
• Scale models from three-dimensional object data are more accurate and truer to reality than manual copies.
• Three-dimensional object data can be read straight into cutting or stamping machines (for positive models) or used to manufacture a mold (for negative models).

Applications in Restoration, Conservation and Cultural Heritage

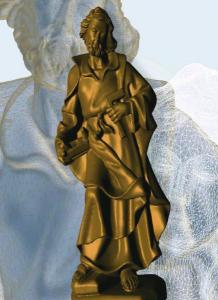

3D object data is supremely suited for virtual restoration, both for producing three-dimensional models and for reproducing the color of objects.

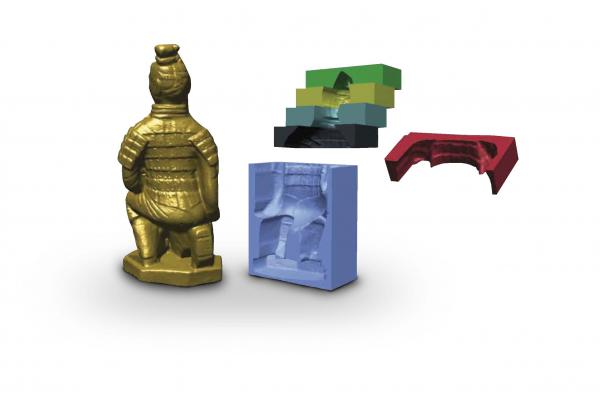

Three-dimensional geometrical models can be embedded in any geometrical shape required. The negative form obtained can then be cut into urethane foam blocks of various sizes.

Applications in Restoration, Conservation and Cultural Heritage

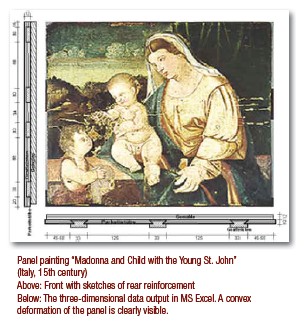

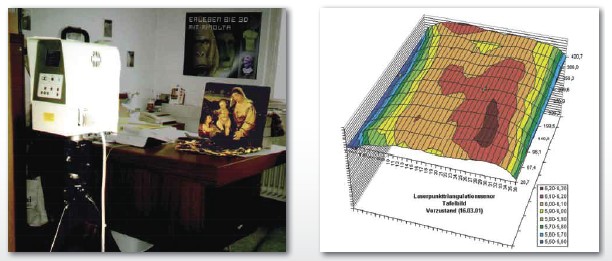

Konica Minolta non-contact 3D digitizers have proved an excellent tool for shape and deformation measurement on panel paintings.

There are three questions of interest in the conservation of panel paintings:

• Firstly, conservators may wish to ascertain the effectiveness of existing stabilization measures such as rear reinforcement, struts and so on, to establish whether stresses are being generated.

• Secondly, it is important to determine the extent of deformation of a wooden panel to ensure that the necessary freedom of movement is allowed when reframing or hanging it.

• Thirdly it allows conservators to fix maximum air-conditioning tolerances in subsequent storage locations.

Applications in Restoration, Conservation and Cultural Heritage

Optical techniques have frequently been used as restoration tools.

KÖHLER 2000 and STIETENCRON et al. 1997 tested the use of non-contact 3D digitizers as an aid in restoration as part of their dissertation.

(Sebastian Köhler, Möglichkeiten zur Herstellung aufsteckbarer Ergänzungen für Holzskulpturen (Methods of manufacturing attachable parts for wooden sculptures, dissertation, FH Cologne, 2000)

(Stietencron et. al., Phenolharzgetränkte Papierwaben als Aufdopplungs material für statisch geschwächte Holztafelbilder (Phenolic resin impregnated paper honey comb as backing material for structurally weakened panel paintings), dissertation, FH Hildesheim, 1997)

KÖHLER describes various ways of manufacturing an attachable piece for a Gothic Pietá whose base was damaged by anobia rot. The work involved scanning part of the severely eroded area with a laser slice digitizer and cutting a new wooden part for the area based on the data obtained.

STIETENCRON et al. 1997 scanned the back of a panel painting severely weakened by anobia rot and used the relief obtained to cut a backing piece of phenol resin impregnated paper honey comb.

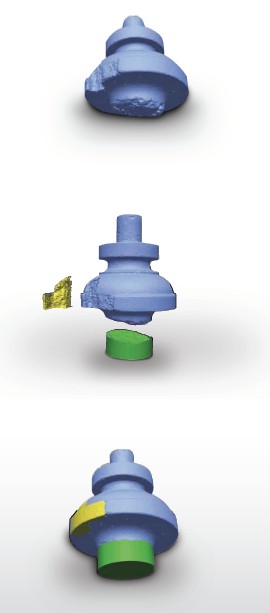

Using Boolean operators, three-dimensional objects can be merged with other 3D objects or any other shapes such as cylinders.

This is an ideal way of measuring weak areas and adding new parts by cutting them out from various materials.
