CM-3600d / 3610d

Horizontal Spectrophotometer CM-3600d and Vertical Spectrophotometer CM-3610d are equipped with Konica Minolta Innovative Optical System technology.

Exceptional accuracy and reproducibility
The is capable of measurements at 10nm intervals over a full range of wavelengths from 360 to 740nm. Using double-beam technology and a dual-channel sensor array, it performs measurement with a high degree of accuracy and reproducibility.
Ergonomic approach for convenient operation

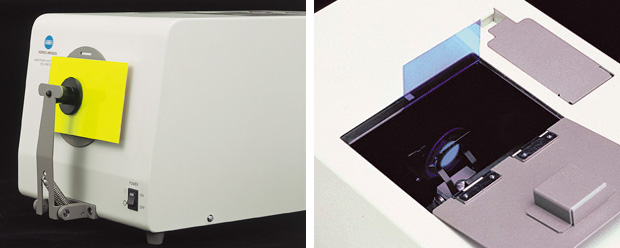

Using the viewfinder, measurement positions can be confirmed from a seated position.
Highly reliable design eliminates the need for maintenance
Technical innovations have allowed mechanisms for SCI/SCE switching, filter movement, etc. to be reduced to the bare minimum. In addition, the application of our ISO9001 quality control system to design and production calibration has helped to ensure high reliability and long service life.
Compact yet advanced design
Although it conceals a large 6-inch integrating sphere, the CM-3600d is smart and compact in appearance.
Three measurement diameters
Select the most appropriate measurement diameter for your particular application.
Exceptional accuracy and reproducibility
This product is capable of measurement at the center of A4-size samples.

Highly accurate and reliable benchtop instrument which can be controlled from a computer using Windows software.
Features a d/8 optical system (diffuse illumination/8° viewing angle) compliant with all relevant standards.
Measurement diameters of 25.4mm, 8mm, and 4mm supported.
Capable of transparent color measurement using a d/0 (diffuse illumination/0° viewing) optical system.
Operates using numerical gloss control.
Capable of performing simultaneous SCI (specular component included) and SCE (specular component excluded) measurements.
Implements numerical UV control.
Determining effects of UV illumination by calculation, this product eliminates the need for time-consuming changing or movement of filters.
Supports simultaneous normal and UV-adjusted color measurements.
