CS-2000
Spectroradiometer
NEW
Highly precise spectral radiance/chromaticity measurement possible from 0.003 cd/m2
Introduction
World's top level capability to detect extremely low luminance
* As a polychromator type spectroradiometer (As of November 2007)
100,000:1 contrast measurement is now possible!
* When the peak luminance is 300 cd/m2
Since the commencement of high-definition TV broadcasting, there is an accelerating proliferation of high-quality
display devices which support full HD for reproduction of sharp, high-resolution images. State-of-the-art technology is
now achieving tone reproduction with contrasts of 100,000 : 1, offering an almost-real feeling. This has spurred technical
competition for reproduction of "blacker blacks" in particular, resulting in the need for an instrument that can measure
extremely low luminance.
In addition, the development of various light-emitting devices, including organic electroluminescent (EL) displays as well as conventional LCD and plasma displays, requires more accurate spectrum analysis. The CS-2000 is a polychromatortype spectroradiometer which achieves 100,000 : 1 contrast measurement with the world's top level capability to detect extremely low luminance levels of 0.003 cd/m2.
Highly accurate measurement of luminances as low as 0.003 cd/m2
Konica Minolta's original optical design and signal-processing technologies provide accurate measurement of luminance/chromaticity down to extremely low luminances of 0.003 cd/m2.
Low-luminance measurements: From 0.003 cd/m2
Measurement accuracy: ±2% (Luminance)
Quick measurements even at low luminance
Designed to thoroughly eliminate mechanical and electrical noise factors, the CS-2000 makes quick measurements with good repeatability possible even at low luminance levels.
Measurement time for 1 cd/m2:
Approx. 5 sec. (FAST mode)
| * | Konica Minolta's previous model CS-1000: Approx. 123 sec. |
|---|
Low polarization error
The polarization error generated when using a reflection-type diffraction grating has been minimized to 2% (measuring angle: 1°). This ensures more stable measurements of display devices that use polarization, such as LCDs.
Half bandwidth of 5 nm
A half bandwidth of 5 nm, which is required for colorimetry (JIS Z 8724-1997, CIE122-1996), is ensured for the entire wavelength range, allowing accurate chromaticity measurement.
Selectable measuring angle for measurement of tiny areas
The CS-2000 enables you to select the optimum measuring angle according to the application.
Measuring angle selection: 1°, 0.2°, 0.1°Minimum measuring area: o0.1 mm ( when the optional close-up lens is attached)
Practical design
- The operating temperature range of 5 to 35°C ensures reliable operation at temperatures in actual work environments.
- Measurement can be started after a warm-up time of only 30 seconds. (Measuring angle: 1°; Target luminance: 5 cd/m2 or more; 23°C)
Stable measurement even of periodic light sources
- Internal synchronization measurement Measurement at numerically-input frequency
- External synchronization measurementMeasurement with line input of vertical synchronization signal to instrument
- Multi-integration mode measurementMeasurement for reducing variations due to unsynchronized measurements or synchronized measurements of sources having irregular light-emission cycles

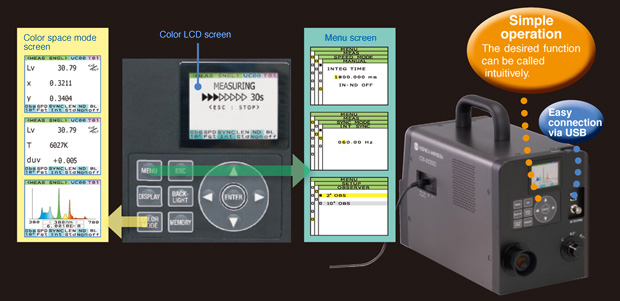

Easy operation with color LCD screen and simple operation panel
The color LCD screen and operation panel are located at the rear of the instrument. The simply arranged operation panel enables intuitive selection of necessary functions.
