"DYNAVISION(*1)-LED" is a new LED imaging system that forges unprecedented and innovative technologies by arranging self-luminous LED elements on a dome-shaped or curved screen. With a maximum brightness of 600cd/m2 (*2) and high brightness and wide color gamut of 155% of the sRGB ratio, it beautifully reproduces the beauty of the vivid blue sky and ocean, the red brightening of the gorgeous sunset, and the twinkling shiny stars, which are difficult to express with conventional projection methods. In addition, the depth of the image increases the overall sense of immersion, by providing a stunningly beautiful and incredibly realistic visual experience.

The first DYNAVISION-LED was installed in the Konica Minolta Planetarium Manten Nagoya, the directly operated theaters of Konica Minolta Planetarium Co., LTD, opened on October 27, 2021. (*3)
Click here for details

*1
"DYNAVISION" is a registered trademark of Konica Minolta Planetarium Co., LTD.
*2
This is the specification for the dome shape.
*3
This is the first planetarium dome theater in Japan to use an LED dome system.

DYNAVISION-LED Movie

01 DYNAVISION-LED ~Tailormade-type immersive video solution~

Seamless and flexible in shape and size
We will create your own special LED vision.

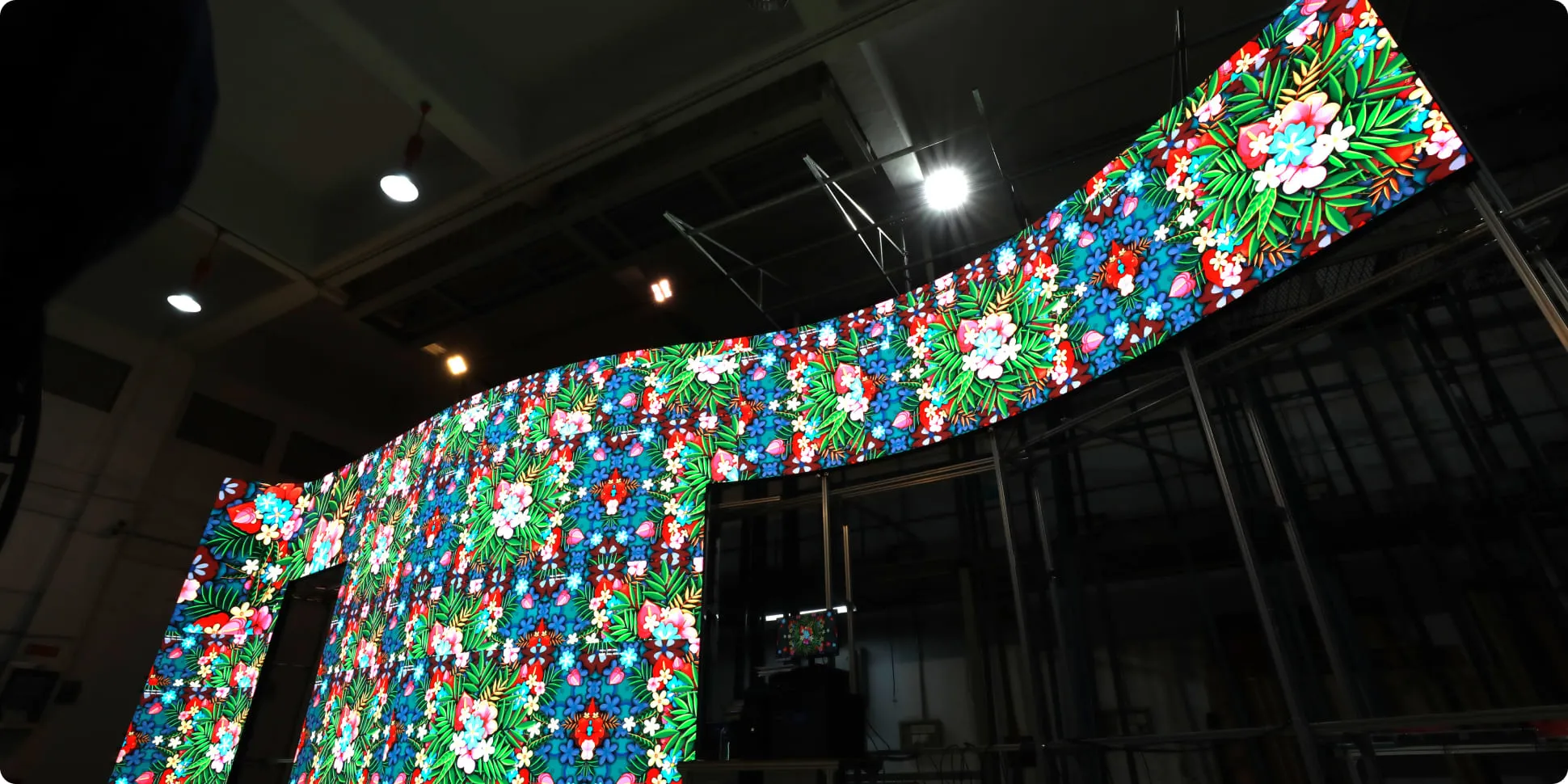

LED dome displays are just one example of the solutions that DYNAVISION LED offers. The combination of modularized LED panels that can be fully custom-designed in terms of shape, size, and LED element pitch, which allows you to create flat, curved, waveform, spherical, and other flexible image transmitting devices.


Creating space as freely as you like, whether in space or in the deep blue sea


Experiencing a different dimension of immersion as never before


Vividly colors the outdoor space


For special presentation halls, factories and control rooms where large amounts of information is monitored


Capable of displaying bright images which will not be affected by flashy illumination effects

Examples of special LED usages

02 Features of DYNAVISION-LED

DYNAVISION-LED is a new system that forges unprecedented and innovative technologies.

BROADCAST

LOW ENERGY

BLACK

MODULAR

EASY INSTALL

COLOR

FRONT SERVICE

LOW NOISE

SEAMLESS

WIDE VIEW

HIGH CONSISTENCY

HIGH REFRESH

DEFINTION

HIGH GRAY

LIGHT

CONTRAST

SEAMLESSSeamless and free form

Freely form and express without worrying about visible joints.

The modular design allows for smooth, natural curves that look as if they are not display devices. We will assist you in optimizing your expression.


Fine pitch LED screen splicing inside (outer) arc diagram (smooth transition)


DLP,LCD screen splicing diagram (with a squeaky feeling)

COLORA sense of realism created by high brightness and high color gamut

High brightness and high color gamut are realized by arranging LED elements with self-emitting light.

DYNAVISION-LED is a video system that uses self-luminous LED elements, unlike the current standard projector projection method.
With its high brightness and high color gamut (sRGB ratio:155%), it beautifully reproduces the beauty of the vivid blue sky and ocean, the red brightening of the gorgeous sunset, and the shimmering stars which are difficult to express with conventional projector projection methods. In addition, the depth of the image increases the overall sense of immersion by providing a stunningly beautiful and incredibly realistic visual experience.


CONTRASTBLACKHigh Contrast


DYNAVISION-LED


General display

High contrast
White is truly white. Black is truly black. The wide color gamut allows for high color reproduction.


DYNAVISION-LED


General display

Reproducing True Black
To beautifully express the lights, darkness is a necessity. DYNAVISION-LED realistically reproduces darkness and enables more dramatic expression.

HIGH GRAYSmooth Color Tones

Represents subtle shifts in color.
The hue and brightness of the displayed image in low-light conditions are superior to those of similar display images. More subtle expression is possible.


DYNAVISION-LED


General display

COLORSound emitted from the screen

Minimal sound echo due to small perforations in the LED panel.
The dome space, where sound can be heard from all the screens, provides an experience as if you are really there.

HIGH REFRESHHigh frame refresh rate

Even fast images such as sports broadcasts are beautifully rendered.
The frame refresh rate is fast and the response time is very short, so there is no stretching or duplication. This is especially beneficial for applications such as streaming events and monitoring screens.


DYNAVISION-LED


General display

03 DYNAVISION-LED LED Dome Theater Specification Chart

Dome diameter 25meters 20meters 15meters 7meters
LED package SMD
Standard Pixel widths 3.8mm 2.7mm 2.7mm 1.9mm
Approximate Resolution 10K and over 10K and over 8K and over 6K
Indicates possible color gamut sRGB ratio:155% (HDR compatible)
Maximum luminance Max 600 cd/ m2
Color depth 8bit/10bit
Input frame rate 60fps
Sound screen -
Video input terminal HDMI/DVI
Operating environment conditions (temperature and humidity) Temperature: 0℃~ + 50℃ , Humidity: 20% ~ 90% RH
Power source 100V-240V 50Hz/60Hz
Minimum dome diameter is 5 meters, no restrictions on maximum diameter.
The above is an example for each dome diameter. Custom design is available depending on the actual installation environment and functional requirements.
