GMP02/
GMP02 Limited Edition

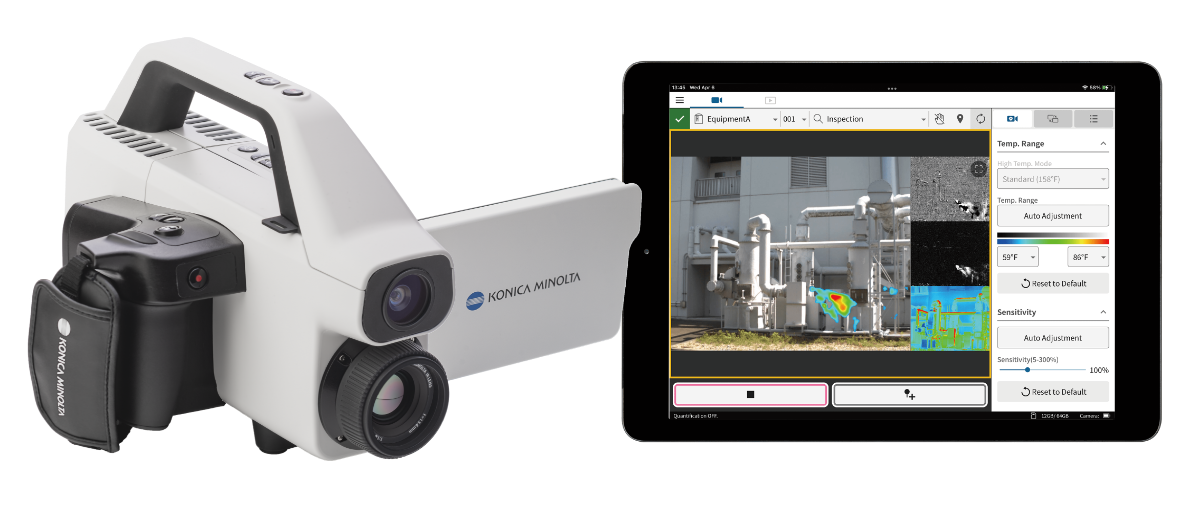

GMP02 is a high-performance gas leak inspection device equipped with advanced flow rate estimation, designed to meet a wide range of field requirements. In addition to GMP02, the lineup includes GMP02 Limited Edition, which retains GMP02’s core capabilities while offering a configuration optimized for LDAR (Leak Detection and Repair) compliance.
Both models come standard with the Inspection Assist Tool (IAT) to enhance inspection efficiency on site.
| Battery operating time | Within 2 hours (without deterioration, in a normal thermal environment) | |
|---|---|---|
| Infrared / visible image shooting function | Shooting range | Horizontal angle of view: 40° |
| Vertical angle of view: 32° | ||
| Image size (Playback mode only) |
Visible image/Visible gas image:640×512 pixels Others:320×256 pixels |
|
| Focus range | Visible: ∞ fixation | |
| Infrared: 0.4 m to ∞ (1.31 ft to) | ||
| Frame rate | 5fps *30fps only for high sensitivity image | |
| Usage environment | Temperature | -20°C to 50°C (-4°F to 122°F) |
| Humidity | Humidity 30% -80% relative humidity (no condensation) | |
| Storage environment (*Excluding battery) |
Temperature | -20°C to 60°C (-4°F to 140°F ) |
| Humidity | Humidity 30% -80% relative humidity (no condensation) | |
| Protection Level | IP54 | |
| External dimensions | 159.0W*186.9H*287.0Dmm (6.26(W) x 7.36(H) x 11.3(D) in.) | |
| Weight | Approx.2.49kg (5.3lbs)*Battery included | |
| Communication | Wi-Fi *Remote control is possible with any tablet device or smartphone connected via wifi. | |
| External I/O | USB MicroB | |
| SD card (Video speed class V30 or higher recommened) | ||
| Safety | IEC 62368-1 | |
| Environment | Compliant with RoHS Directive | |
| EMC | ICES-003 issue 7 class A (Emission) FCC Part 15 Subpart B class A (Emission) |
|
| Detectable Gases | Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Isoprene, Pentene, Benzene, Toluene, Xylene, Ethylbenzene, Propylene, Methanol, Ethanol, Formaldehyde, Acetaldehyde, Acetone, Methyl ethyl ketone, Methyl isobutyl ketone, Ethers, Esters, Hydrocarbon gas except Acetylene | |
| Quantifiable Gases(Only available on GMP02) | Standard: Methane, Ethylene, Propane Optional: Ethane, Propylene, iso-Butane, n-Butane |
|
Notes:
- *The specification and the external appearance of our product is subject to change without notice.
- *Battery life in specifications shows typical values.
- *The color tone displayed on your computer monitor may differ from the actual tablet display screen.
- *Export authorization of U.S. Government may be required for this camera under US Export Administration Regulations (EAR).
