GMP03 Specs
| Battery operating time | Approximately 2.5 h(without deterioration, in a normal thermal environment) | |
|---|---|---|
| Infrared / visible image shooting function | Shooting range | Horizontal angle of view: 40° |
| Vertical angle of view: 32° | ||
| Image size (Playback mode only) |
320 x 256 | |
| Focus range | Visible: ∞ fixation | |
| Infrared: 0.4m to ∞ (1.31 ft to ∞ ) | ||
| Frame rate | 5fps *30fps only for high sensitivity image | |
| Usage environment | Temperature | -20°C to 50°C (-4°F to 122°F) |
| Humidity | Humidity 30% -80% relative humidity (no condensation) | |
| Storage environment (Excluding battery) |
Temperature | -20°C to 60°C (-4°F to 140°F ) |
| Humidity | Humidity 30% -80% relative humidity (no condensation) | |
| Protection Level | IP54 | |
| Shock | 25g (IEC60068-2-27) | |
| Vibration | 2g (IEC60068-2-6) | |
| External dimensions | 156(W)×181(H)×272(D)mm (6.14(W)×7.13(H)×10.71(D) in.) | |
| Weight | Approx.2.4kg (5.3lbs)*Battery included | |
| Communication | Wi-Fi, Bluetooth | |
| External I/O | USB Type-C | |
| SD card (Video speed class V30 or higher recommended) | ||
| Safety | IEC 62368-1 | |
| Environment | Compliant with RoHS Directive | |
| EMC | ICES-003 issue 7 class A (Emission) FCC Part 15 Subpart B class A (Emission) |
|
| Detectable Gases | Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Isoprene, Pentene, Benzene, Toluene, Xylene, Ethylbenzene, Propylene, Methanol, Ethanol, Formaldehyde, Acetaldehyde, Acetone, Methyl ethyl ketone, Methyl isobutyl ketone, Ethers, Esters, Hydrocarbon gas except Acetylene | |
| Quantifiable Gases | Standard: Methane, Ethylene, Propane Optional: Ethane, Propylene, iso-Butane, n-Butane |
|
Customer Support
If you have any questions about the camera, please contact us.
Notes：
- *The specification and the external appearance of our product is subject to change without notice.
- *Battery life in specifications shows typical values.
- *The color tone displayed on your computer monitor may differ from the actual tablet display screen.
- *Export authorization of U.S. Government may be required for this camera under US Export Administration Regulations (EAR).

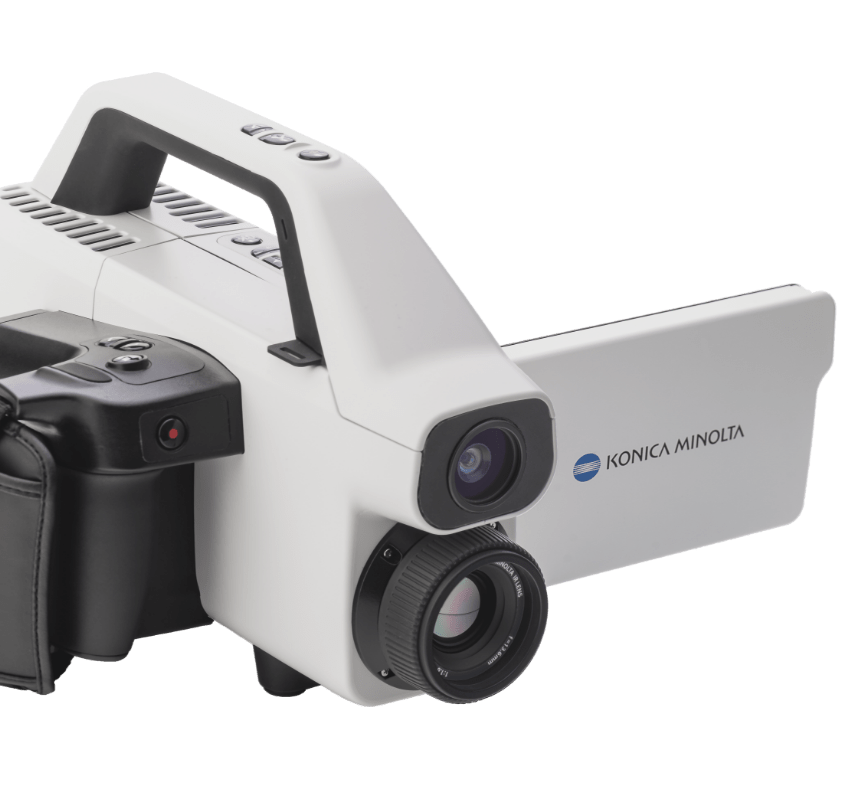

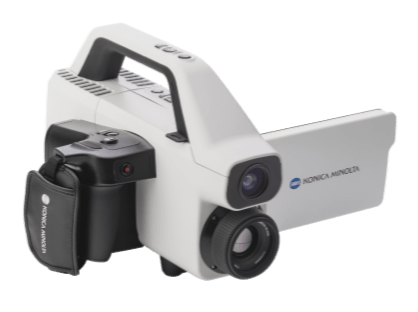

GMP02 Limited Edition
GMP02 Limited Edition preserves the core strengths of Konica Minolta emission detection while offering a streamlined design.
This Limited Edition model is the perfect choice for professionals seeking a detection-only Optical Gas Imaging（OGI）camera to support their LDAR (Leak Detection and Repair) protocols.
To further boost inspection efficiency, it comes equipped with our Inspection Assistance Tool (IAT).
View More
