Quantitative Optical Gas Imaging Camera : GMP03Workflow

The integrated solution for detection and measurement. GMP03 offers unmatched performance—exceptional gas visibility, accurate and repeatable flow rate estimation, and practical data management tools—leading the industry with innovation.

Detection

Clear VISUALIZATION

Advanced Visualization with Konica Minolta’s Imaging Technology.
Our proprietary image processing technology significantly reduces disturbing noise, enabling clear detection in challenging environments.

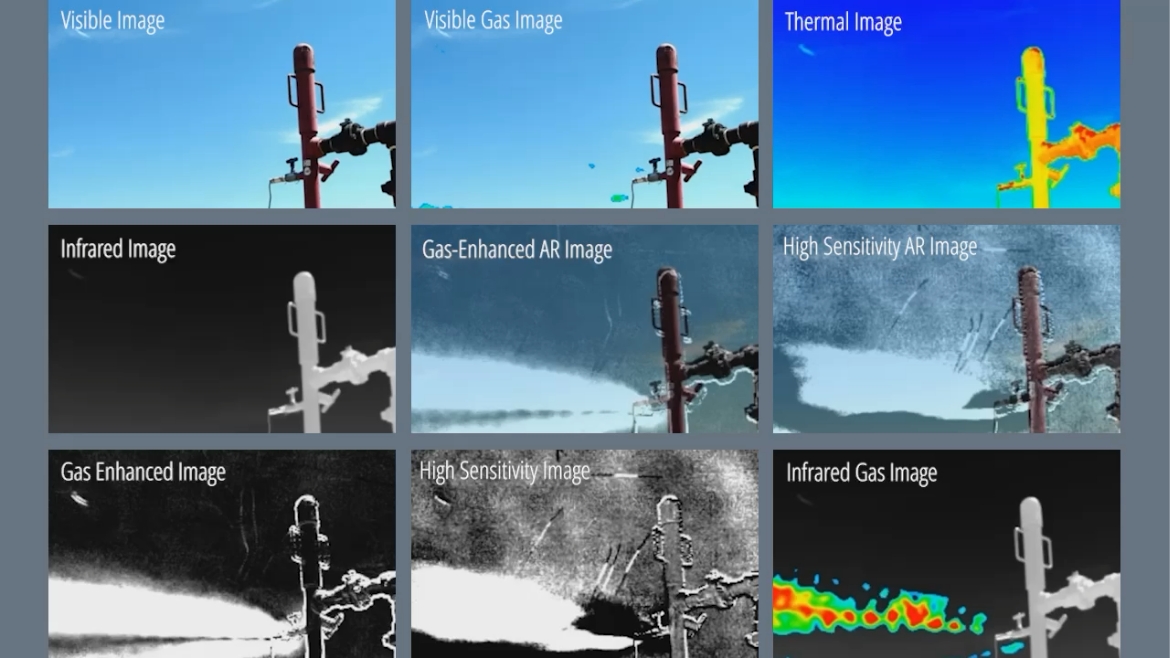

9 Distinct Image Modes for Gas Detection

Switch between image modes to identify gas.Unique images that make gas detection easier; highlighted gas, images combining visible and infrared overlays, and gas-enhanced visuals.

Flexible Detection

Perform inspections in a variety of positions and setups. The lightweight body is equipped with a variable-angle grip and LCD, and image stabilization algorithm, allowing comfortable gas leak inspections from any position.

Quantification

ACCURATE Quantification

One Unit - Many workflow.

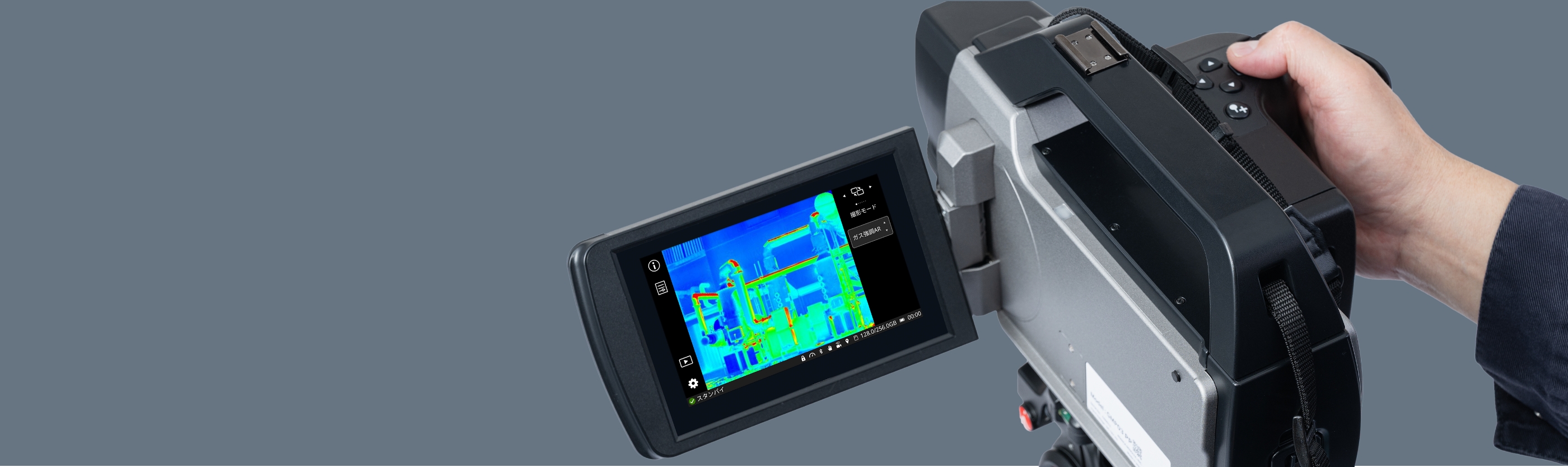

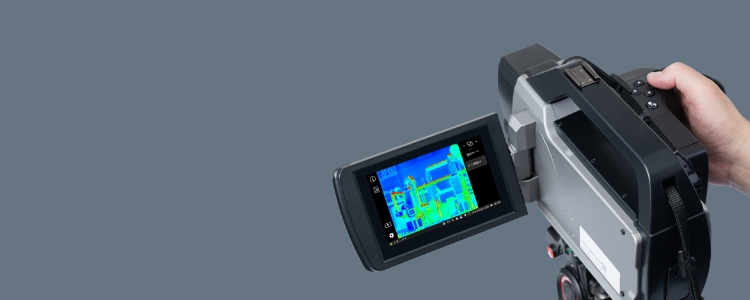

With the GMP03 camera, emission detection and estimation are achieved easily, accurately, and in one single device.

Quantification Workflow

  1. 0 Recording
    Measure and record gas leaks.
  2. 1 Select Gas Type
    Up to three types are available as standard, with four optional types available.
  3. 2 Enter Distance
    Enter the distance to the object.Mounted range-finder inputs accurate distance with a single tap.
  4. 3 Enter Temperature
    After the camera automatically acquires and enters the temperature, tap the button.

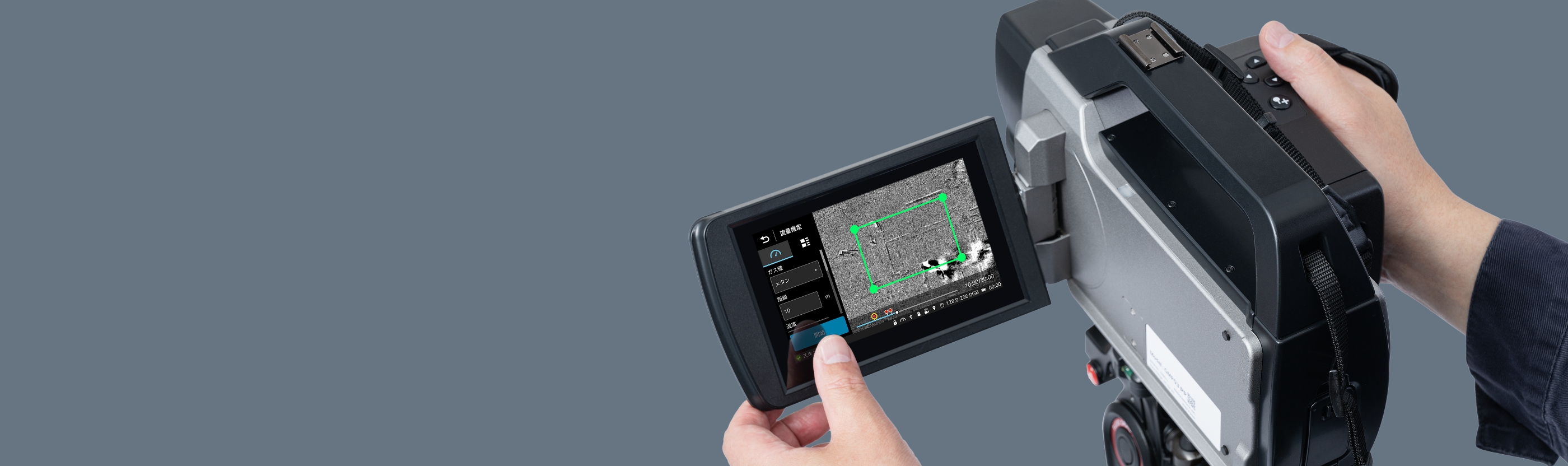

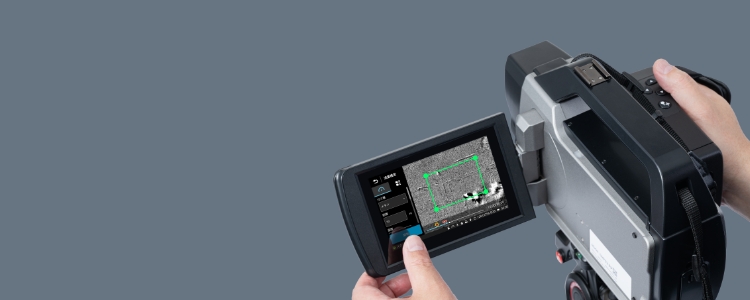

  5. 4 Select Area
    Select the area of gas volume you want to measure (green rectangle).

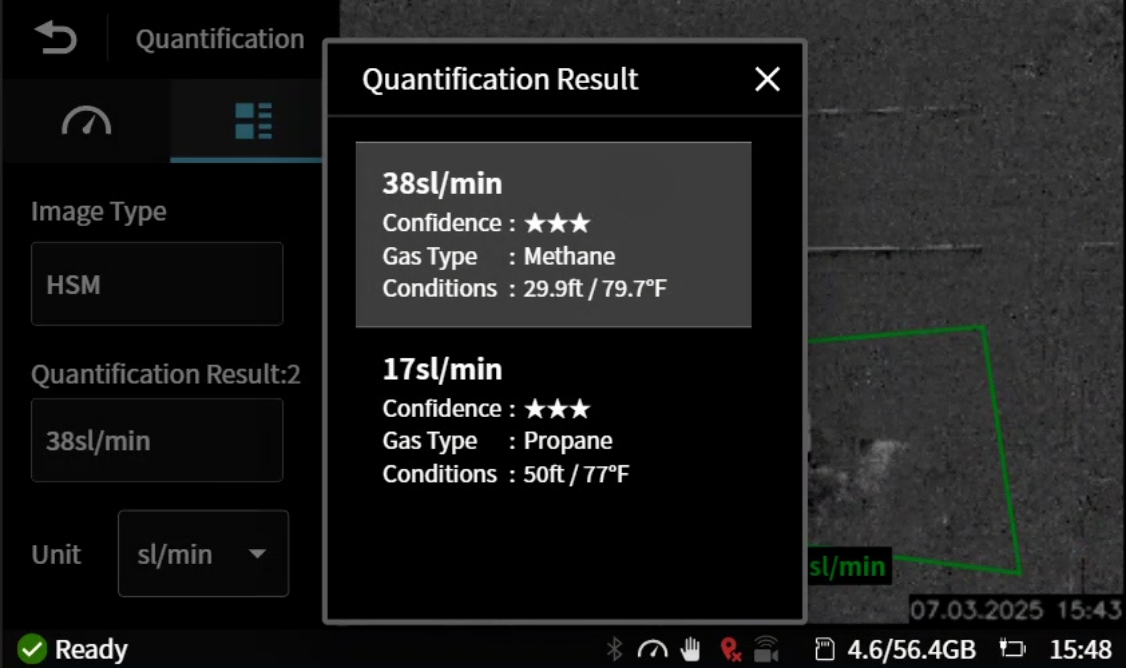

  6. Quantification
    The transit time is calculated from the gas flow rate to estimate the flow volume.

Accuracy Background

  • ➊ Red — Low
  • ➋ Yellow — Medium to Low
  • ➌ Colorless — High
Sensitivity Map Function

Displays optimal shooting backgrounds for gas flow estimation.Helps improve quantification accuracy for every technician.

*The sensitivity map displays the approximated accuracy of quantification by color.

Confidence Indication for Flow Rate Estimation

Automatically detects factors such as weather and noise, and evaluates the confidence of emissions results using a 3-star indicator. Aides in evaluation of measurement results.

Data ManagementInspection Assistance Tool

Smoother Data Management

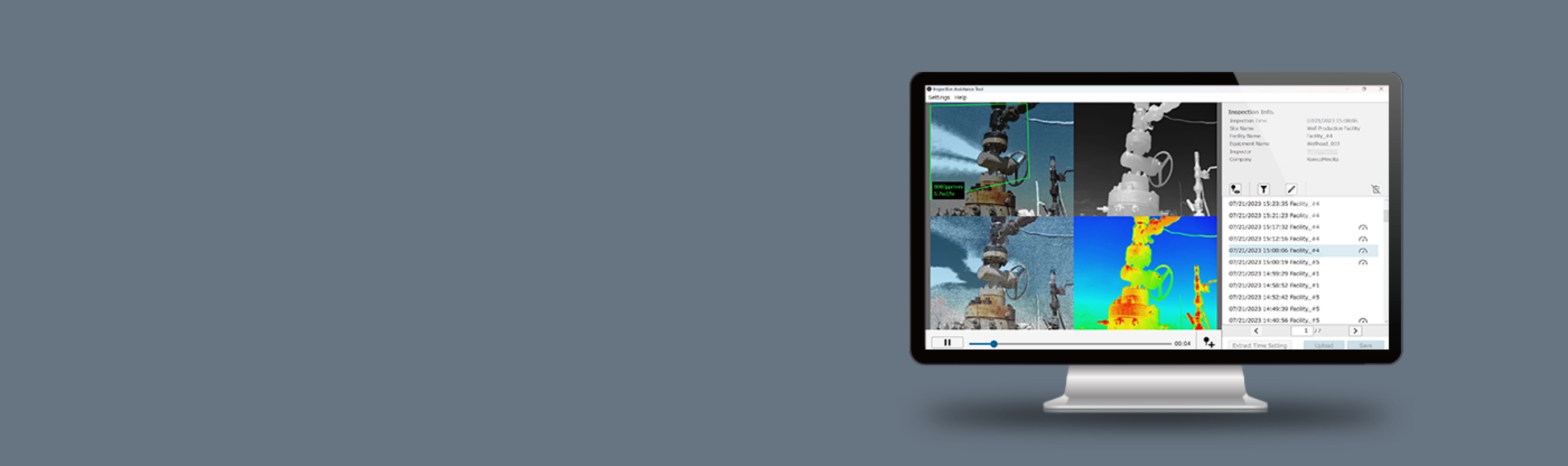

You can manage inspection data on your PC with the Inspection Assistance Tool (IAT).
This tool allows you to quickly browse videos and relevant inspection data and gain insight into the operational status of your facility.
The IAT is also useful for facility operations complying with EPA LDAR regulations.

System Features

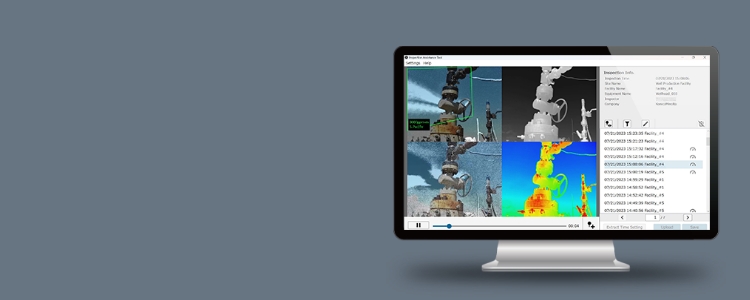

  • Simultaneous, multiple video playback

    Simultaneously play back and compare videos with different image modes.

  • Simplified filtering with inspection conditions

    Use inspection conditions to filter past records for quick, easy searches.

  • Add inspection information tags to videos

    Location inspection information can be linked to recorded videos for display.

  • Edit inspection data

    Correct and add inspection information and extract recorded gas leak videos for use in regulatory reviews and audits.

    *Video courtesy of METEC - Colorado State University Energy Institute.

Process Breakdown

* Inspection data: Inspection date, location, facility name, etc.
