Quantitative Optical Gas
Imaging
Camera : GMP02Visualization
Clear Visualization
Auto-Reduction of Noise
Reduces non-gas interference (noise), to provide the inspector with clearer imaging.
Non-gas interference and noise are automatically minimized allowing for the gas cloud to be more distinctive.
High Detectability
By unique image processing, gas plumes can be quickly and accurately identified, even from long range.
This can include complex equipment, operating under high temperatures, in confined spaces, which would
otherwise go unnoticed.
Multiple Image Modes
Inspect a facility in a variety of perspectives and analyze their operational status in depth.
-
Visible Image -
Visible Gas Image -
Thermal Image -
Infrared Image -
Gas-Enhanced AR Image -
High Sensitivity AR Image -
Gas Enhanced Image -
High Sensitivity Image -
Infrared Gas Image
*Image courtesy of METEC - Colorado State University Energy Institute.
Signs of a potential equipment or process issue (Thermal Image Mode)
Internal systems, such as compressor status, appears in a thermal distribution view. Compared to compressor A (normal operation), compressor B shows uneven thermal distribution, suggesting the possibility of internal malfunction and potential future malfunction of compressor B.
Quantitative Optical Gas
Imaging Camera : GMP02Usability
Enhanced Portability
With its lightweight body and image stabilization function, the camera can be carried and inspected in a hand-held state. A higher degree of freedom to inspect in confined spaces, such as narrow compressor stations or the top of a tank, are now available.
Large Screen Display with Wi-Fi Connectivity
Connect your tablet, smartphone, or other smart device as an additional display. With this capability, the potential exists for a safety-conscious approach to monitoring a leak.
User-Friendly Interface
Switching between display screens and recording, can be executed smoothly and seamlessly, even with work gloves on. The comfortable side-grip and button design layout allow for relaxed field operation.
-
Top side -
Left side -
Back side
Easier Data Management

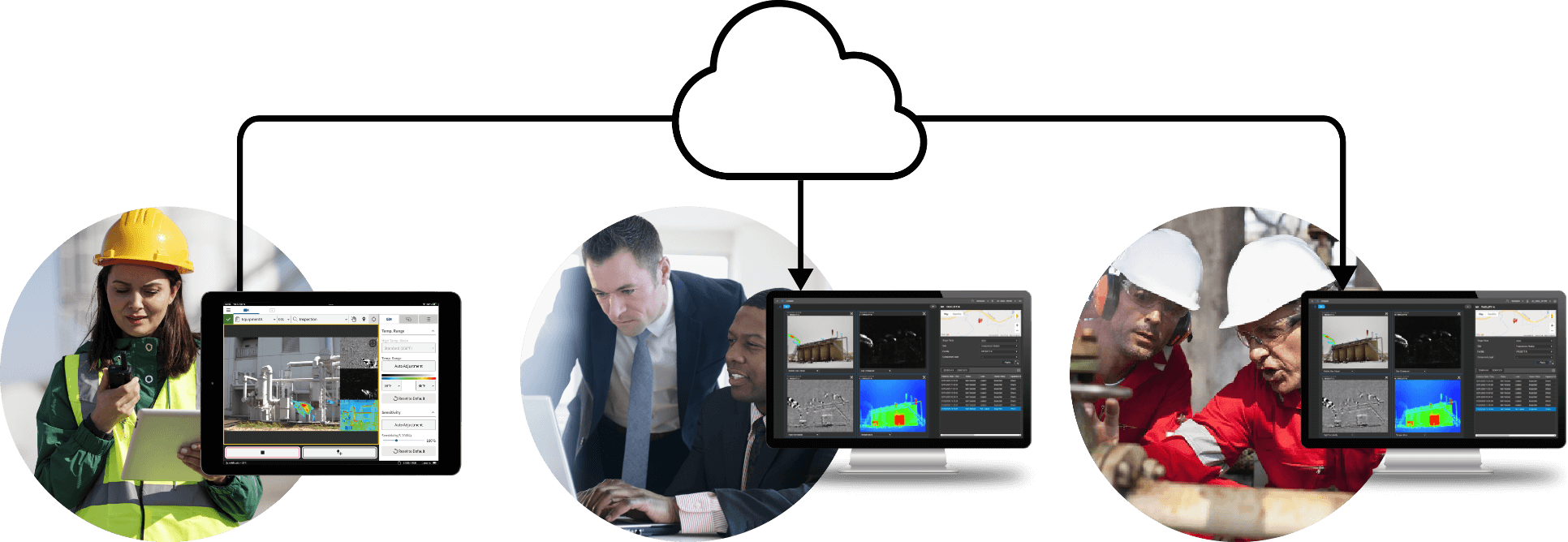

Inspection results can be uploaded to the cloud and accessed from anywhere in the world.
Specs
| Battery operating time | Within 2 hours (without deterioration, in a normal thermal environment) | |
| Infrared / visible image shooting function |
Shooting range | Horizontal angle of view: 40° |
| Vertical angle of view: 32° | ||
| Image size (Playback mode only) |
Visible image/Visible gas image:640×512 pixels Others:320×256 pixels |
|
| Focus range | Visible: ∞ fixation | |
| Infrared: 0.4 m to ∞ (1.31 ft to) | ||
| Frame rate | 5fps *30fps only for high sensitivity image | |
| Usage environment | Temperature | -4°F -122°F |
| Humidity | 30%RH -80%RH (no condensation) | |
| Storage environment (*Excluding battery) |
Temperature | -4°F -140°F |
| Humidity | 30%RH -80%RH (no condensation) | |
| Protection Level | IP54 | |
| External dimensions | 6.26(W) x 7.36(H) x 11.3(D) in. | |
| Weight | 5.5 lbs. *Battery included | |
| Communication | Wi-Fi *Remote control is possible with any tablet device or smartphone connected via wifi. | |
| External I/O | USB MicroB | |
| SD card (Video speed class V30 or higher recommended) | ||
| Safety | IEC 62368-1 | |
| EMC | ICES-003 issue 7 class A (Emission) FCC Part 15 Subpart B class A (Emission) |
|
| Detectable Gases | Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Isoprene, Pentene, Benzene, Toluene, Xylene, Ethylbenzene, Propylene, Methanol, Ethanol, Formaldehyde, Acetaldehyde, Acetone, Methyl ethyl ketone, Methyl isobutyl ketone, Ethers, Esters, Hydrocarbon gas except Acetylene | |
- *The specification and the external appearance of our product is subject to change without notice.
- *Battery life in specifications shows typical values.
- *The color tone displayed on your computer monitor may differ from the actual tablet display screen.
- *For quantification of the GMP02, the standard quantifiable gases are methane, propane and ethylene. Quantification is also available for ethane, propylene, butane and isobutane for option.
Export authorization of U.S. Government may be required for this camera under US Export Administration Regulations (EAR).
