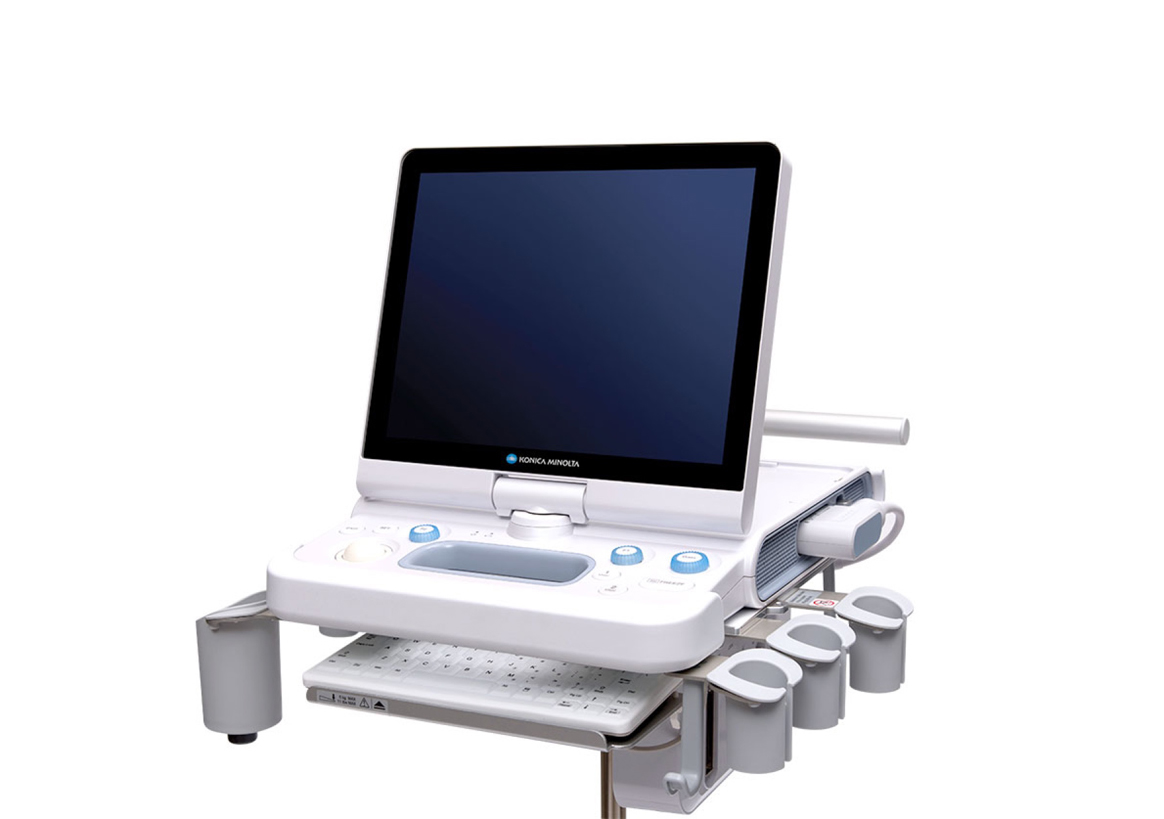

SONIMAGE HS1

  • Superior Image Quality (T2HI)
  • Innovative design
  • Intuitive user interface
  • Simple Needle Visualization (SNV) technology

Hand-carried ultrasound system designed for you

The SONIMAGE HS1 is a Point-of-Care portable ultrasound system designed to support a wide range of applications and patient types. The system's advanced technologies ensure superior image quality and efficient workflow.

Hand-Carried Ultrasound

Designed with your help

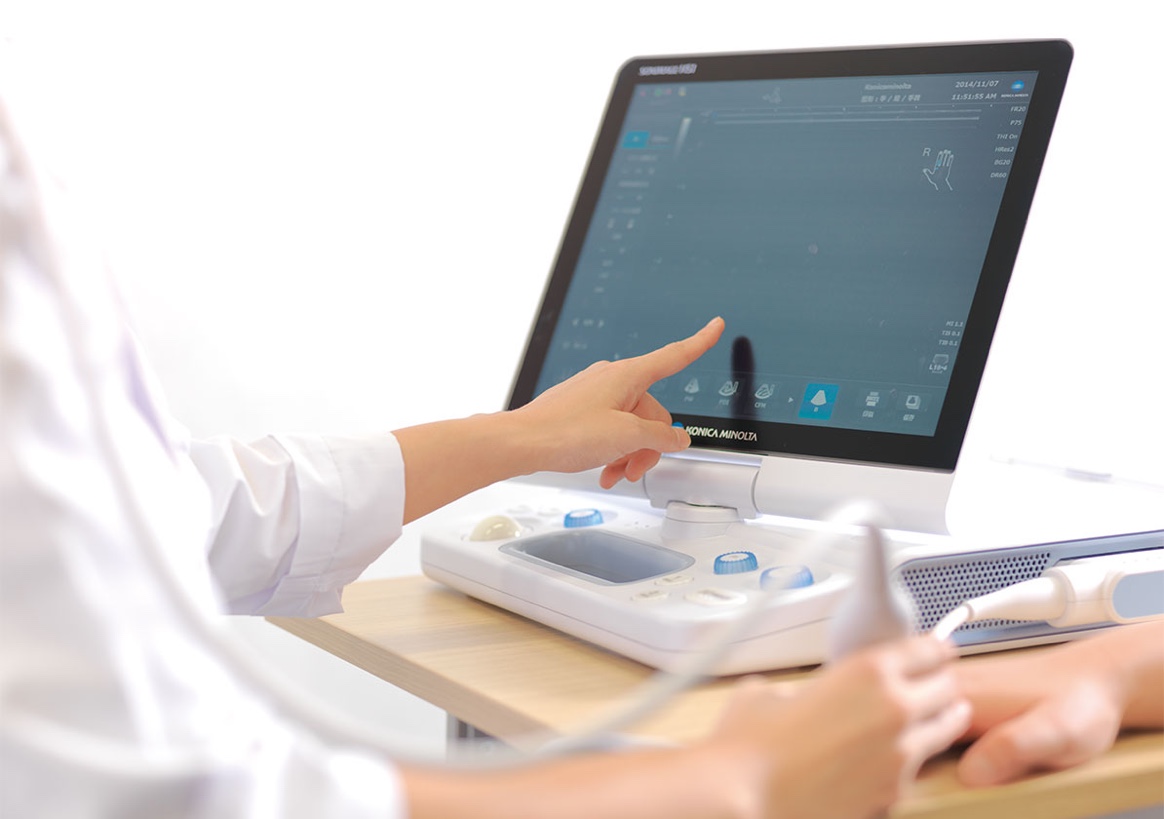

Streamlined Console and Intuitive Operation

The simple console and intuitive touchscreen increase flexibility for different user preferences and workflow situations. The console has been streamlined to include trackball plus only the eight most frequently used keys. The result is improved workflow efficiency.

Streamlined Console
Intuitive Operation

See beyond your expectations

Enhanced Clarity

By combining an originally developed the ultra-wide band high frequency probe and the newly image engine, Konica Minolta have succeeded in transmitting and receiving Differential Harmonic /Additional Harmonic / Harmonic chords  that come into the band.
This advanced technology features allow improved image detail and contrast resolution for precision diagnosis and better patient outcomes. The high frequency linear probe “L18-4” provides exceptional image quality with an advanced level of Tissue Harmonic “T2HI”, and it is particularly ideal for superficial.

Improve Image Quality

Konica Minolta's Dual Sonic Technology uses a unique algorithm that enables the transmission of two waveforms, according to the focusing depth. In combination with T²HI technology, it forms a high quality THI signal around the center of ultrasound beam in the receiving area. As a result, it suppresses the acoustic noise and ensures the optimum image from deep area to superficial.

Improve image quality
Improve image quality

Gain Confidence

Simple Needle Visualization (SNV) improves the detection of the needle tip in both "In plane" and "Out of plane" approaches.
Also, a new function "Auto" of SNV Steer automatically detects the insertion of the needle and adjusts the beam accordingly.

Increased Confidence

A wide range of applications

Auto IMT

Auto IMT (intima-media thickness) calculation is an advanced quantification application to assess arterial health. This non-invasive method to evaluate cardiovascular risk contains an IMT measurement, calculates a Vascular Age and Framingham Risk Factors.

Voice Control

Voice Control

Voice activation of The SONIMAGE HS1 allows for handsfree operation during interventional procedures

  • Simple and accurate voice activation
  • Handsfree system operation
  • No need to break the sterile field
  • Focus more on the patient
  • Enhance diagnostic efficiency

The SONIMAGE HS1 voice control operation feature fosters user comfort and proper operator ergonomics at the point-of-care.

Voice Control

Strain Elastography

This is a unique real-time qualitative imaging method that calculates and displays the relative stiffness of tissue.
It also provides further clinical information for assessment of superficial lesions.

Strain Elastography

Brochure Download

SONIMAGE HS1

Learn More Brochure

Appendix Download

Learn More Brochure

*This site is intended for healthcare workers.
