KM800/1600 series
Thin film piezo drive technology enables high productivity, high resolution, and high-speed. Compatible with a wide range of inks from water-based to eco-solvent.
Specifications
| Model Name | KM800 | KM800-D | KM800H-MR | KM1600 |
|---|---|---|---|---|
| Number of Nozzles | 800 | 800 | 800 | 1600 |
| Print Width (mm) | 56.4 | 56.4 | 56.4 | 56.4 |
| Resolution (npi) | 360 | 360 | 360 | 720 |
| Dimensions (mm) | W99 x D18.8 x H109.4 | W99 x D18.8 x H109.4 | W99 x D18.8 x H119.0 | W101.5 x D59.8 x H112.4 |
| Jetting Frequency (kHz) | 18/10 | 18/10 | 18/10 | 18 |
| Drop Volume (pL) | 5～22/30 | 5～22/30 | 5～22/30 | 5～22 |
| Heater | None | None | Available | None |
| Damper | None | Available | None | None |
| Inks | Water-based, Solvent | Water-based, Solvent | UV, Oil, Solvent | Water-based, Solvent |
| Viscosity (mPa∙s) | 5～7 | 5～7 | 5～12 | 5～7 |
| Weight (g) | 100 | 120 | 150 | 350 |
| Grayscale Level | 4 | 4 | 4 | 4 |
| Ink colors | 2 | 2 | 1 | 4 |

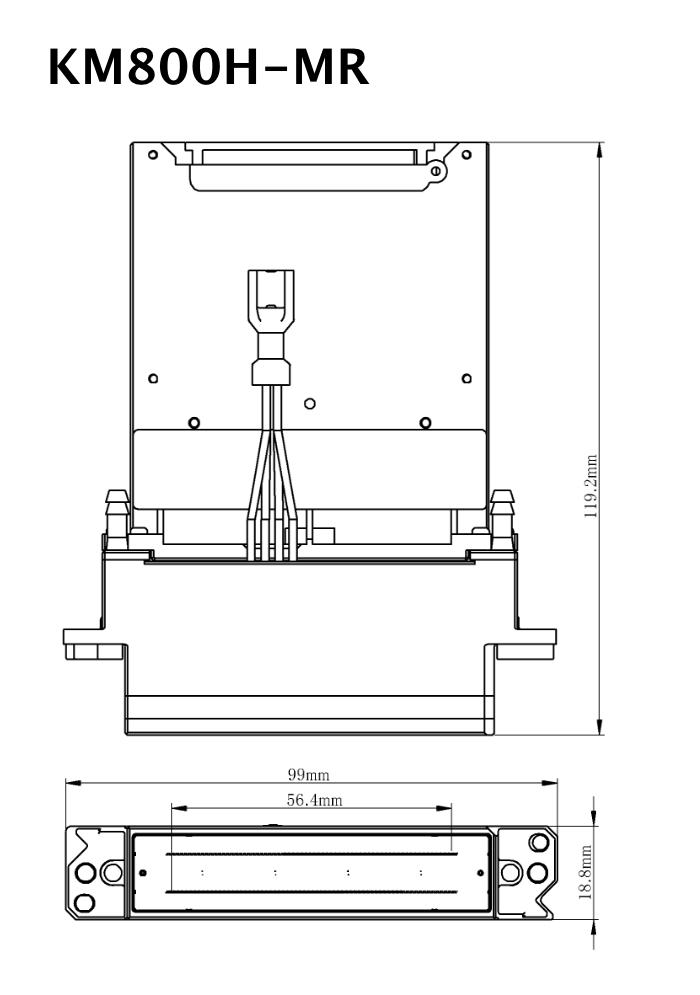

2D design
* The specifications are as of November 2021 and subject to change without notice.
