KM1800i Series
Compact design while achieving a nozzle resolution of 600 npi and a print width of 75 mm.
Specifications
| Item | KM1800iSHC-C-2 | KM1800iSHK-DC |
|---|---|---|
| Technology | Piezo Drop on Demand | |
| Drive System | Independent drive system | |
| Resolution | 600 npi(100npiｘ6lines) | 600 npi(100npiｘ6lines) |
| (300 npi per color when using 2 colors) | ||
| Number of Nozzles | 1776 (296nozzles×6lines) | 1776 (296nozzles×6lines) |
| (888 per color when using 2 colors) | ||
| Drop Size | 3.7 pl | 5.5 pl |
| Max Frequency | 62 kHz | 5.5 pl |
| Printing Width | 75 mm | 75 mm |
| Dimensions | W138 mm×D20mm×H108 mm | W135 mm×D24mm×H107 mm |
| Weight | Approx. 200 g | Approx. 250 g |
| Grayscale | 16 levels | 16 levels |
| Built-in Heater | Available | Available |
| Ink type | Solvent, UV, Oil | Solvent, UV, Oil |
| Water-based Ink | ―** | ―** |
* The above specifications are as of August 2025. Specifications and appearance are subject to change without prior notice.
** For inquiries regarding compatibility with water-based ink, please contact our sales representative.

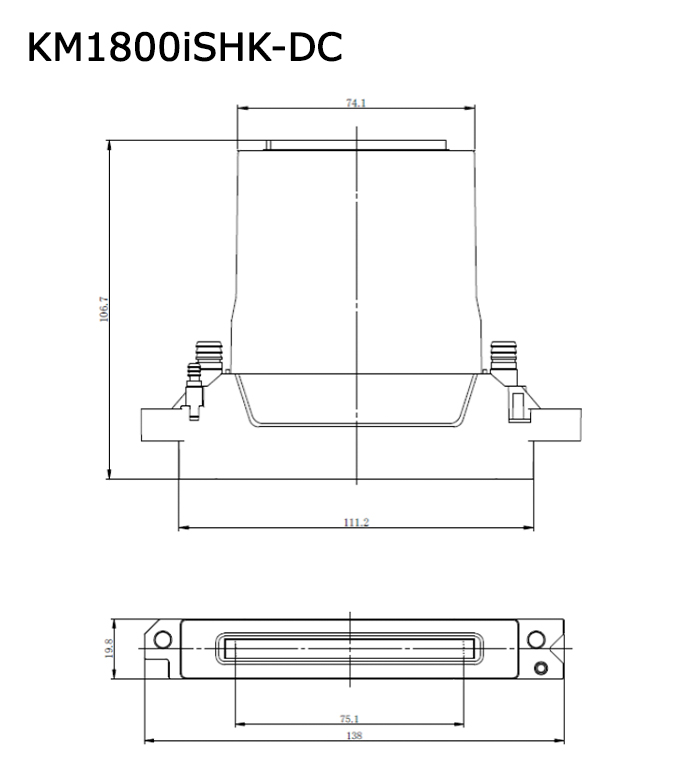

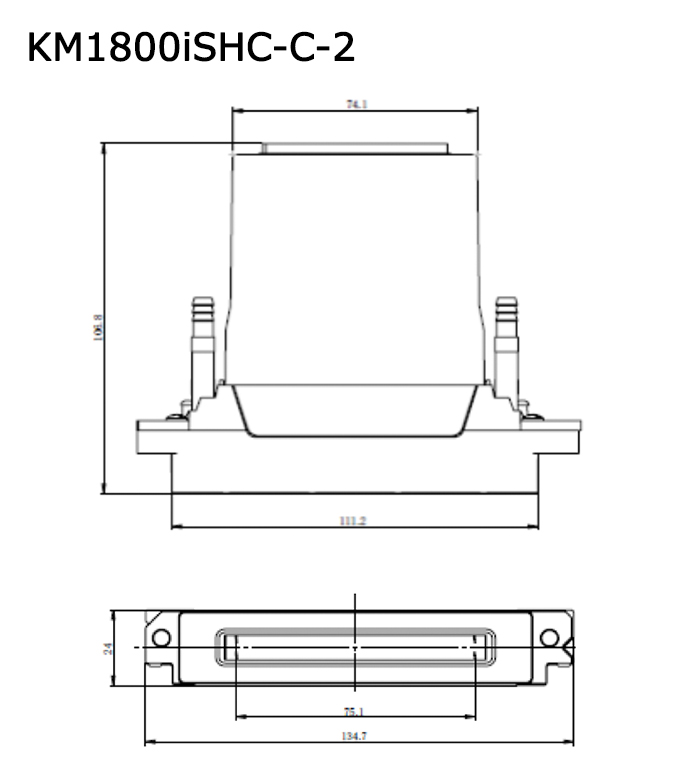

2D design
